12M/Min Cable Tray Making Machine 4kW CR12Mov With Quench Treatment

Ask Lasest Price
Brand Name :	HENGRUIYANG
Model Number :	OEM ODM
Certification :	CE , ISO9001, TUV, SGS
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	30sets per month
Delivery Time :	within 45 days after receiving the deposit

Add to Cart

Product Details
Company Profile

12M/Min Cable Tray Making Machine 4kW CR12Mov With Quench Treatment

Cable Tray Cover Making Machine

Main features

Cable Tray Cover Making Machine is designed to produce different sizes of cable tray cover to use with cable tray. This protects the cable and extends cable life.

Flexible to install, its good performance combined with a visually appealing profile in the electrical industry. For general use indoor, with a clean looking finish, the tray is offered in pre-galvanized steel, however,if use outdoor that need the extra corrosion protection,hot dip galvanized after fabrication cable trays are available.

Technical parameters

Items	Specifications
De-coiler	3 tons manual decoiler
Rolling Speed	8 to12 m/min
Diameter of roller shaft	60mm
Hydraulic cutting power	4kw
Material of cutting	CR12Mov with quench treatment
Hardness	HRC58-62
Tolerance	+ - 1.5mm
Control System	PLC with touch screen Japanese Siemens and Yaskawa Brand
Way of drive	single chain

Machine components

Name	Unit	Qty
Main Roll Forming Machine	Set	1
Manual Decoiler	Set	1
Feeding & Leveling	Set	1
Control System	Set	1
Cutting Device	Set	1
Output Table	Set	2

Working flow of roll forming machine

Uncoiling—Feeding&Leveling-Cutting&Punching--Roll forming—Products collecting

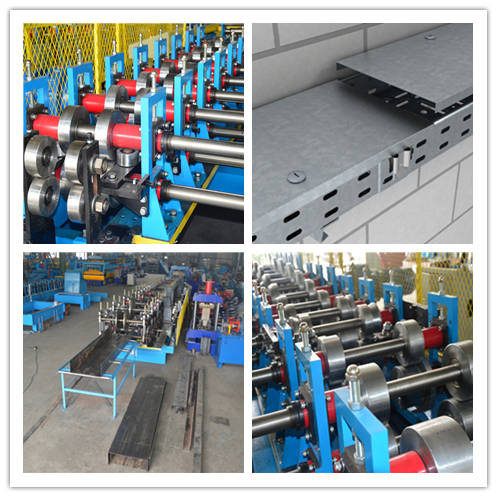

Machine picture

Profile drawing
