    18m/Min Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel

    Ask Lasest Price
    Brand Name : HENGRUIYANG
    Model Number : OEM ODM
    Certification : CE , ISO9001, TUV, SGS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30 sets per month
    Delivery Time : within 45 days after receiving the deposit
    • Product Details
    • Company Profile

    18m/Min Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel

    Galvanized steel Heavy Duty Cable Tray Roll Forming Machine10-18m/min

    Product Description
    specifications

    de-coiler

    Parameter: width of material: 225-1020mm thickness: 1-2mm;
    Inner diameter of coil: 508mm;inner expansion range: 480-520 mm;
    The maximal of Diameter: 1500mm; The Maximal of loading: ≤5T
    Motor power: 5.5kw frequency change control
    Press material type: pneumatic press material
    Feeding speed: 0-15m/min, adjustable

    Leveling machine of Heavy Duty Cable Tray Roll Forming Machine
    A: working roller: nine rollers type leveling machine
    B: Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal

    feeding machine

    A: function: material feeding

    b. Feature: Uses the servo motor-driven .Multistage type feeding: May input 10 group of different feeding lengths. The liquid crystal touching screen demonstrated is advantageous for the change, establishes various technical parameters. The auto-induction start system and the punch press linkage (control punch press start).

    Punching press

    Model of punching press: JF21-120B
    Roll forming part
    Forming station: 14sets
    Forming variety: bridge frame
    The diameter of the roller axis: 85mm
    18m/Min Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel

    Hydraulic cutting

    Cutting type: hydraulic cutting
    Blade type: close type die cavity cutter
    Hydraulic power:5.5kw
    Material of blade: Cr12, quench treatment, hardness HRC56-58
    Quantity: 9 (depend on customer request)
    18m/Min Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel

    Run-out table
    Structure: roller type with no power
    Electric control system
    A: Full line is controlled by PLC control system,touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc..
    B: Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency was stopped ensure the safe of the equipment and operator.
    Application
    18m/Min Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel

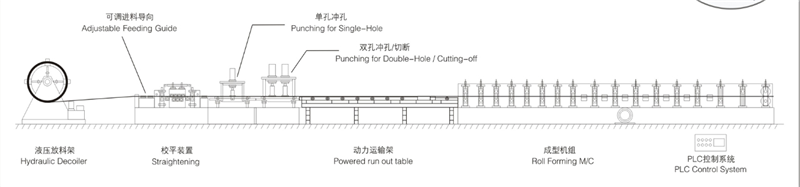

    Working flow

    18m/Min Heavy Duty Cable Tray Roll Forming Machine Galvanized Steel
