PLC trapezoidal metal roofing sheet roll forming machine design
manufacture
1. This roll forming machine can rollform metal roofing step tile.
After roll formed by this roll forming machine, the surface will be
very smooth and beautiful without any scratch on surface.
2. Rollforming process:uncoiler, rollforming, forming step effect,
cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control
panel.
5. We also can do a custom roll forming machine, We can design the
machine according to your specification and profile drawing.
Specification
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05 mm chrome |
| 7 | Shaft material | 45# steel with 0.05 mm chrome |
| 8 | Weight | 6.5 tons |
| 9 | length | 5.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter
|
Work flow
Manual uncoiler-- roll forming machine-- PLC control box--
hydraulic cutter- output table

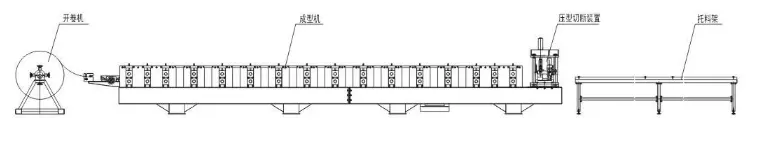

Machine detail drawing
