C Purlin Quick Change Size Roll Forming Machine c z interchangeable
purlin roll forming machine cz forming machine
Product Description
CZ interchangeable purlin roll forming machine advantges:
1 CZ Purlin machine can produce both C Purlin and Z Purlin. The C
change into Z operations is easy.
C purlin size range: 80-300mm, and Purlin size range:120-300. Also
the CZ Purlin can be designed according to customers requiry.
2 CZ Purlin machine can adjust the both C size and Z size quickly
,by adjust backboard , and very easy operation.
3 The cutting parts no need to change the mold, just by adjust
certain size, it can cutting the Purlin properly.
4 The price of the CZ Purlin is reasonable, about FOB : USD 25,000
5 CZ Purlin machine can save much of the workshop place.

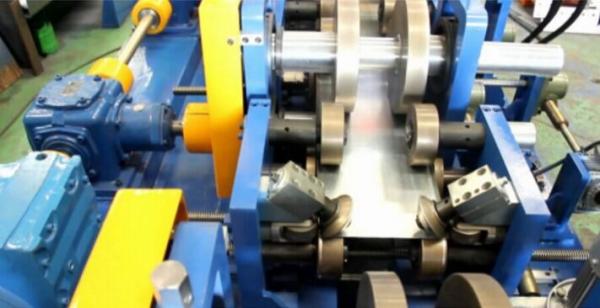

6 Above is a machine picture of the C80-300/Z120-300 C Z purlin
interchangeable roll forming machine.
CZ interchangeable purlin roll forming machine Details
C,Z purline adopt high strength steel plate and shaped after cold
forming, it has wall thickness homogeneous, size and dimension can
be adjusted, big compression strength ect characteristics. The C
purline machine which after cold forming, although the section
dimension is light, it corresponds with carrying capability’s
feature for roof purline and makes steel’s mechanical efficiency
into full playing. It can make the C,Z purline can lighten the
construction roof’s weight, reduce project steel quantity. So it
becomes economic high efficiency steel. It is new building material
instead of angle iron, channel steel, steel tube and tradition
purline. C,Z purline and light metal tile using together is the
best choice for light steel construction.
The C,Z purline’s use has following features:
Light weight, low cost .
Simple construction, the purline can be cutting length well by
professional processing plant, punching, finished at the same time,
when carrying to construction plant, it can be installed directly.
Product Application
Automatic C Purlin Quick Change Size Roll Forming Machine(also
called Automatic Change Size C Purlin Roll Forming Machine) from
BMS MACHINERY is is a heavy duty forming line designed for the
production of C purlins,which is most commonly used in Metal
Building Systems.
Automatic C Purlin Quick Change Size Roll Forming Machine
DECOILER | Manual type | no power,5Ton*500mm | coil inner–diameter=508mm；
Load capacity= MAX.5.0Ton, Coiler Width= 500mm |
| Hydraulic type | 5Ton*600mm | Load capacity= MAX.5Ton;
Hydraulic system expand coil inner hole, Pump motor: 3KW;Coil
inner–diameter=470-510mm;
Coil Width= MAX.600mm;
Drag-off rotation type |
Main performance parameters of MAIN ROLL FORMING MILL | Main motor capacity | kw/h | 18.5 |
| Forming station | with extra 5rollers (upper 3 and 2 down))for pre-leveling | 16 |
| Forming speed(not incl.punching&cutting) | meter per minute | about 15-18 |
Hydraulic Punching and Cutting system | Hydraulic system | MPa | 16(max.) |
| Hydraulic drive | kw/h | 7.5 |
| Cutting tool material | Tool steel | Cr12 |
Main Features
The advantages of Automatic C Purlin Quick Change Size Roll Forming
Machine when comparing with Traditional C Purlin Machines are as
follows:
1.Produce different purlin size without changing rollers or
spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save
material
5.Optional Punch hole at any position of purlin web side and flange
side
Machine Parts
1. C purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for
dual-holes).
2. C purlin machine pre cutter
made by high quality mold steel Cr12 with heat treatment
3. rollers
Rollers manufactured from high quality bearing steel GCr15, CNC
lathes, Heat Treatment.With black treatment or Hard-Chrome Coating
for options.
4. PLC control system
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)
